CNC Hydraulic bending machine steel plate shearing machine , Steel rolling machine

Place of Origin CHINA
Nazwa handlowa FSM
Orzecznictwo CE, ISO
Model Number WS24
Minimum Order Quantity 1
Delivery Time 30 working days
Supply Ability 20 sets per month
Szczegóły Produktu
Work-piece material Q235A Roller number 3 or 4 rollers
Control method Electric box Pre-bending function YES
High Light

hydraulic guillotine shearing machine

,

hydraulic press brake machine

Zostaw wiadomość
opis produktu

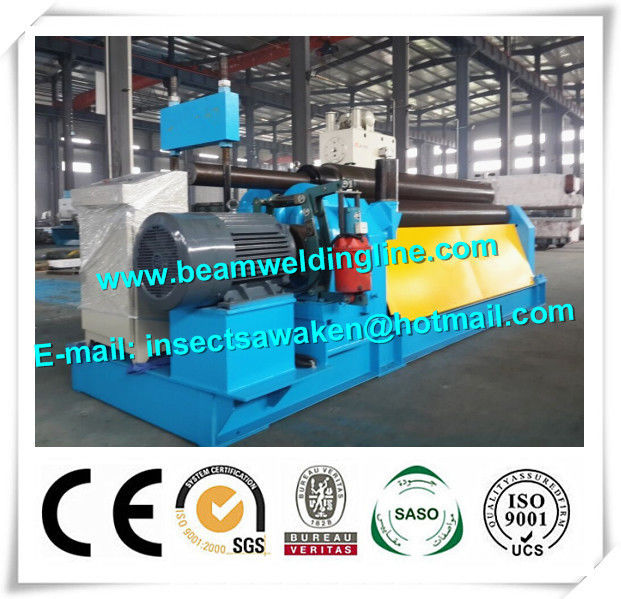

CNC machine rolling hydraulic bending machine steel bending machine profile rolling machine hydraulic bender



W24Y Hydraulic stainless steel pipes tubes and profile and section rolling bending machine







1. Features



● Rolls are hardened & made from high quality steel

● Drive shafts are hardened and ground with double taper roller bearing support

● Machine can be set up in horizontal or vertical working position

● Roving foot pedal control with emergency stop

● Hydraulic lateral angle guide rolls

● Three rollers are powered . European quality. Can be used in both vertical and horizontal position





2. Advantages



● Perfectly complete pre-bending, rolled-up. Working principle: two down rollers as main driving roller. Triple geared drive, low voltage driver, low current consumption and high efficiency

● The two touch steel stick can permit the good finishing quality of asymmetric plate section bending. NC system, advanced and compact structure with full function

● The machine has six oil tanks (two big oil tanks, four small oil tanks), and the head is vertically. The yield strength bended profile with 320Mpa (Max.)

● Both horizontal and vertical working positions. Double pinch hydraulic forming rolls. Hardened precision threaded shafts. Dual adjustable lateral guides rolls are driven via 3 separate hydraulic motor lower rolls hydraulic movable up and down

● Perfectly complete pre-bending, rolled-up, roll calibrate. Working principle: two down rollers as main driving roller or all three rollers as main driving roller with upper roller fixed and two down rollers do up-and-town movement around one fixed center





3. Specification



Model & spec. W24S-6 W24S-16 W24S-30 W24S-45 W24S-75 W24S-100 W24S-140
Max bending modulus of section (cm3) 6 16 30 45 75 100 140
Bending speed(m/min) 5.5 5.5 5.5 5.5 5 5 5
yield limit of material (MPa) 245 245 245 245 245 245 245
inward bending of angle steel The max cross section (mm) 50×5 80×8 90×10 100×10 120×12 140×16 150×16
  The min bending diameter (mm) 800 1000 1200 1500 2000 2500 2400
  The min cross section (mm) 20×3 30×3 35×3 36×5 38×4 40×5 50×5
  The min bending diameter (mm) 400 550 560 600 600 720 1000
outward bending of angle steel The max cross section (mm) 50×5 80×8 90×10 100×10 120×12 140×16 150×16
  The min bending diameter (mm) 800 1000 1100 1300 1600 1800 2200
  The min cross section (mm) 20×3 30×3 35×3 36×5 38×4 45×5 50×5
  The min bending diameter (mm) 400 550 500 600 700 760 400
outward bending of channel steel channel steel model 8 12 16 20 25 28 30
  The min bending diameter (mm) 600 800 800 1000 1100 1100 1200
inward bending of channel steel channel steel model 8 12 16 20 25 28 30
  The min bending radius (mm) 700 900 1000 1150 1600 1700 1700
plane bending of flat steel The max cross section (mm) 100×18 150×25 180×25 200×30 220×40 250×40 280×50
  The min bending diameter (mm) 600 700 800 900 1000 1200 1300
vertical bending of flat steel The max cross section (mm) 50×12 75×16 90×20 100×25 110×40 120×40 150×40
  The min bending diameter (mm) 500 760 800 1000 1100 1300 1500
bending of round pipe The max cross section (mm) 42×4 76×4.5 89×5 89×8 114×5 159×5 168×6
  The min bending diameter (mm) 500 750 900 900 1200 2000 2000
bending of round bar The max cross section (mm) 38 52 62 75 85 90 100
  The min bending diameter (mm) 450 600 600 800 100 1100 1200
bending of square pipe The max cross section (mm) 45×3 60×4 70×4 80×6 90×8 100×10 125×10
  The min bending diameter (mm) 750 900 1000 1200 1600 2000 2500
